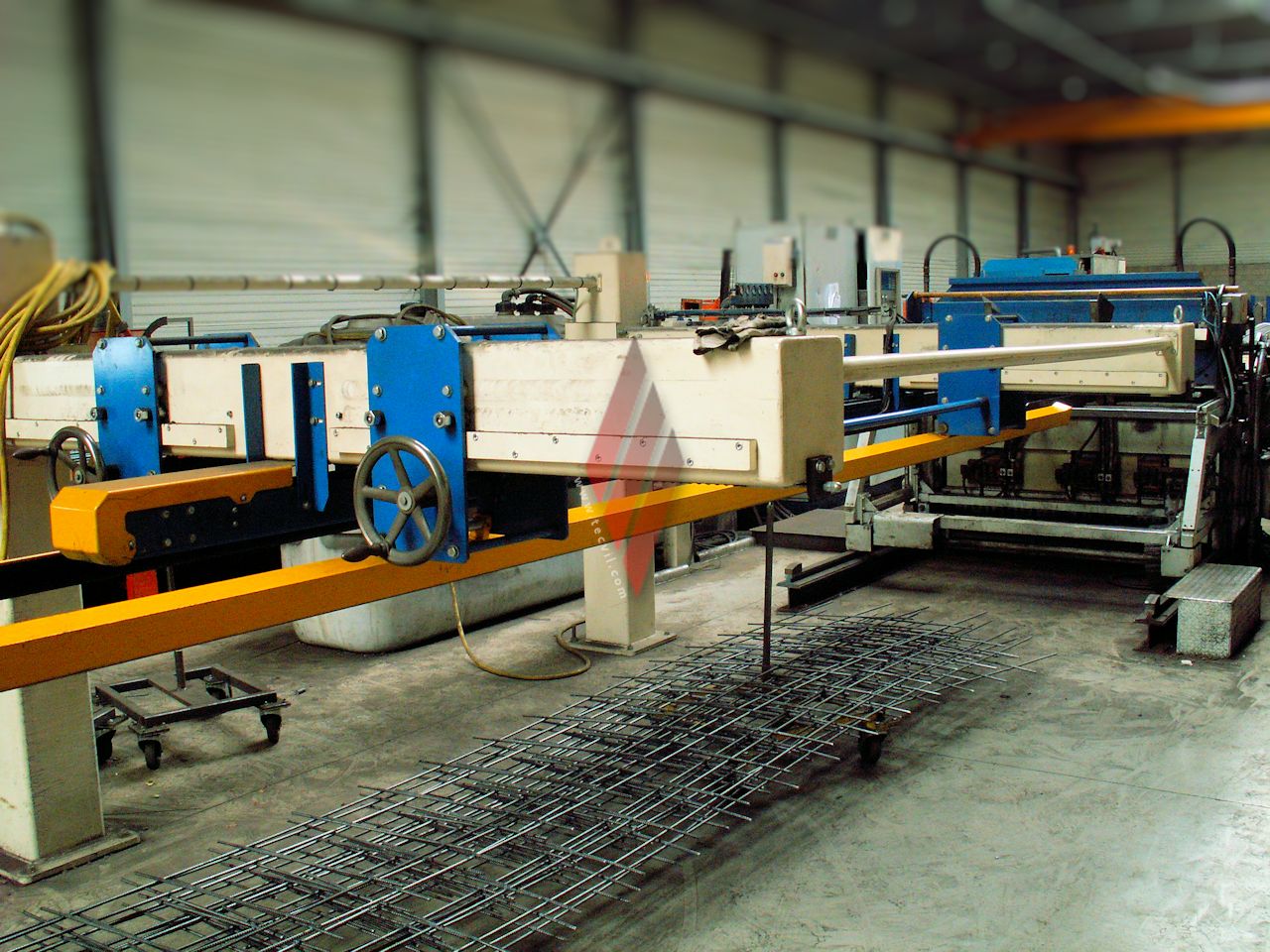

SCHLATTER PG16, complete welding line to produce welded mesh
SCHLATTER PG16, complete welding line to produce welded mesh. Year: 1991
- 6 Meter line wire table
- Line wire pre loading unit

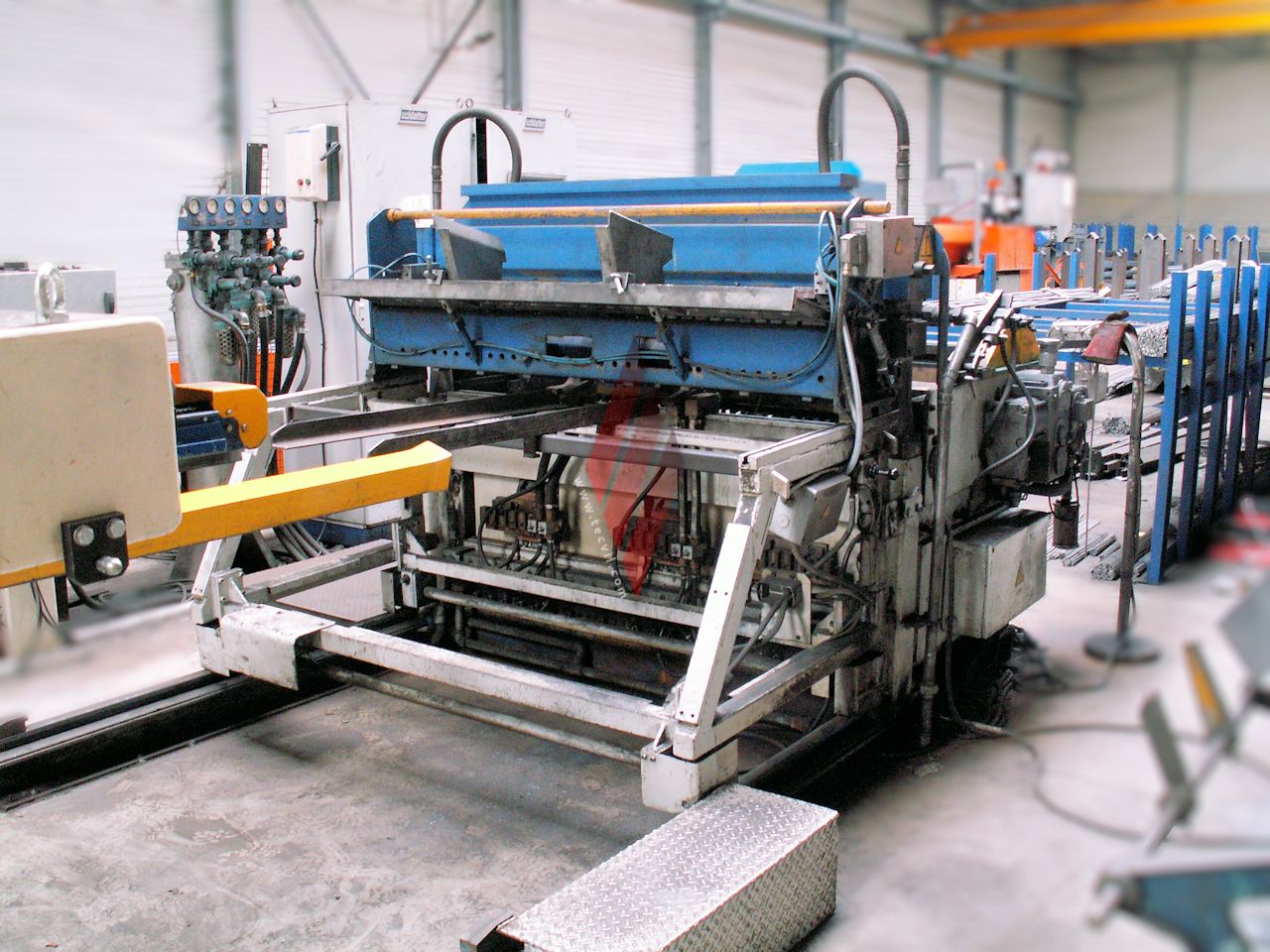

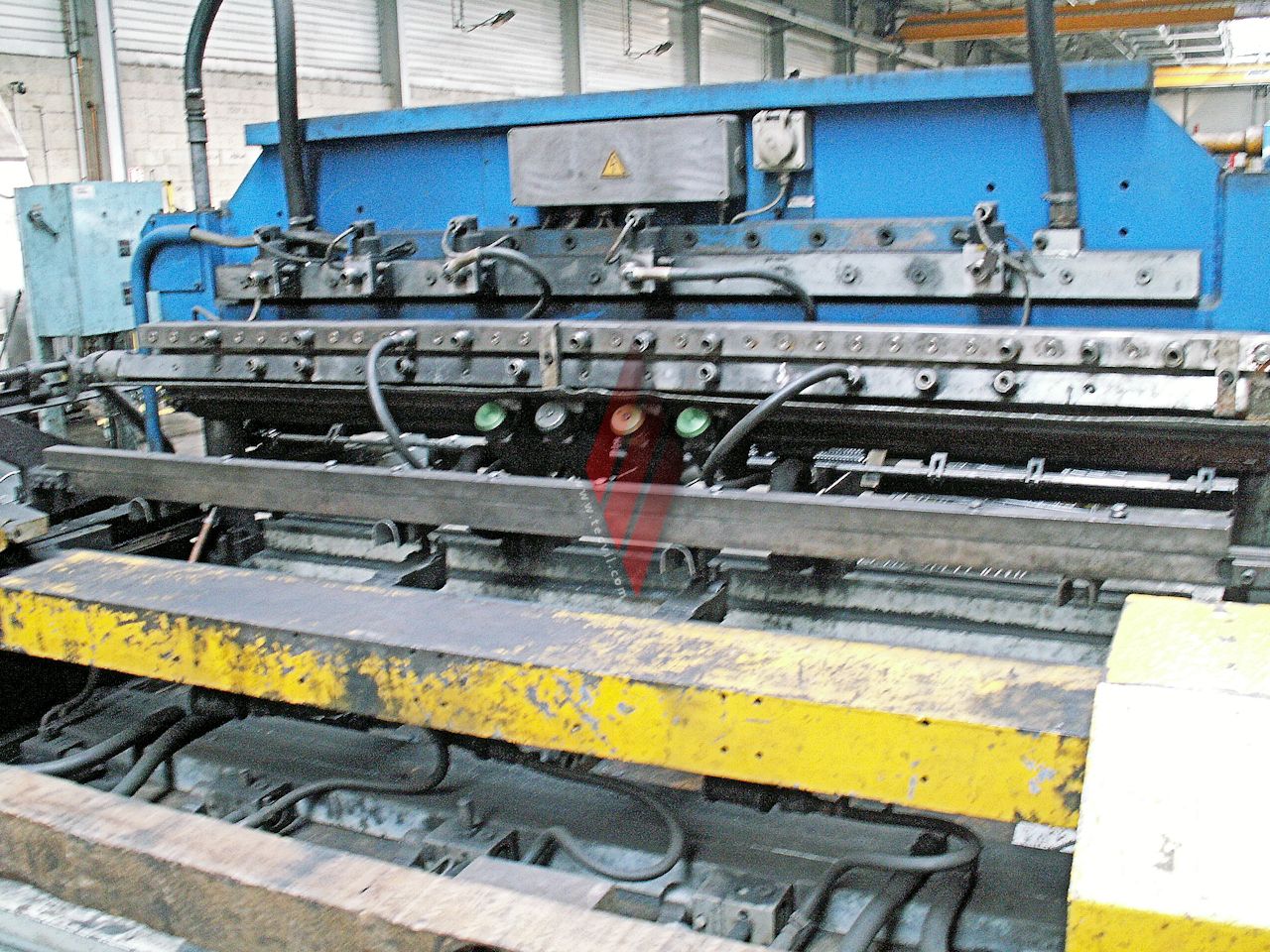

- Welding machine SCHLATTER MG 16.1/3C ( 3 welding transformer 100KVA each)
- Cross wire feeder QFE34/2

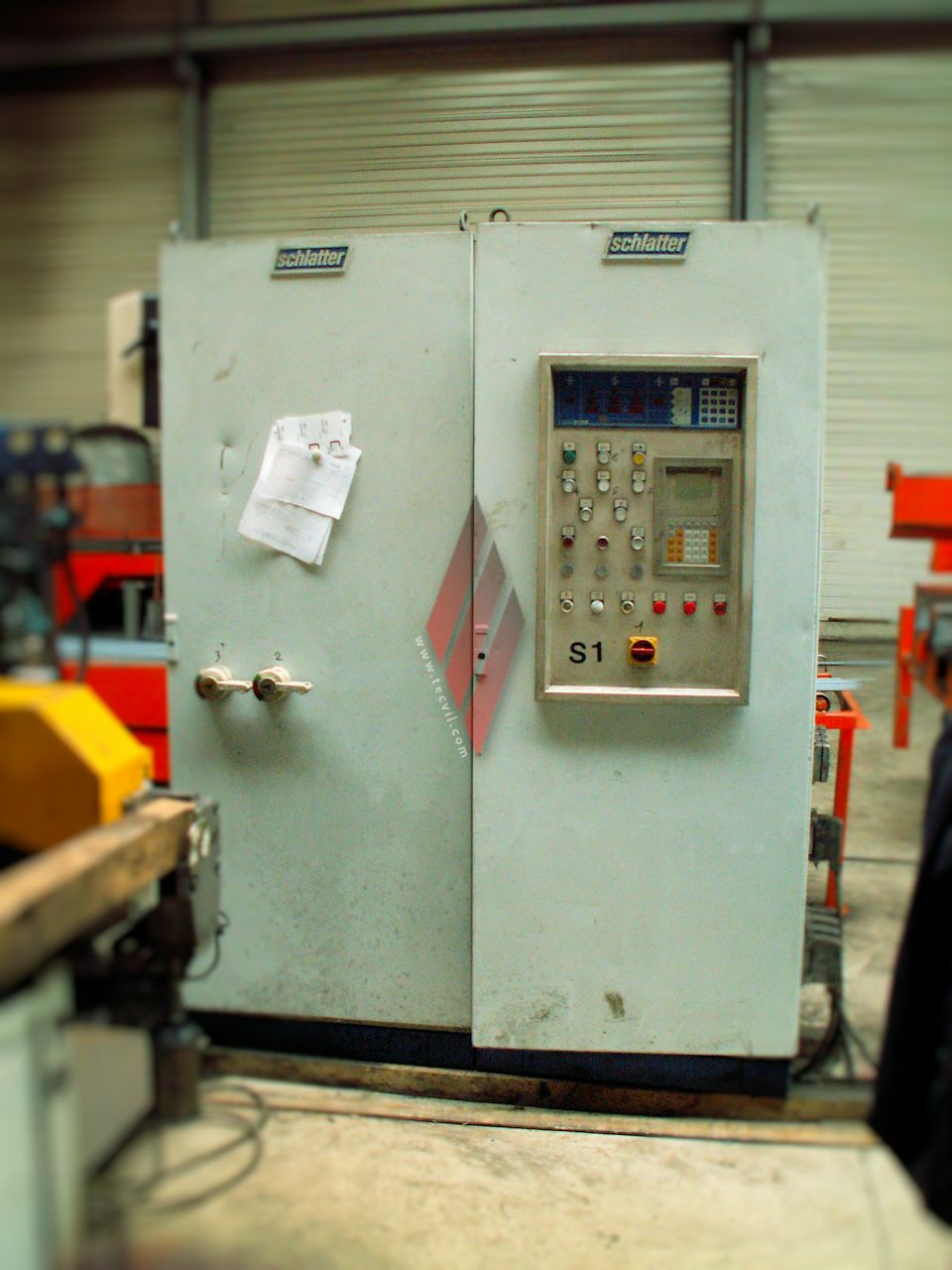

- Control cabinet S5 115U/SWEP04
- Power cabinet
- Stacking unit up to 6 meters
- Optional conveyers’
TECHNICAL SPECIFICATION
| Mesh width | max. 1650 mm min. 300 mm |
|---|---|
| Line wire length | 800 – 6000 mm |
| Space between line wires | min 50 mm |
| Space between cross wires | min. 25mm |
| Line wire diameter | 4.0 – 12.0 mm |
| Cross wire diameter | 4.0 – 12.0 mm |
| Amout line wires | 10 |
| Line wire overhang | min. 0 mm max. 170 mm |
| Max. line and cross wire diameter | Min space between line and cross wires |
|---|---|
| 3.0 + 3.0 mm | 50 x 50 mm |
| 8.0 + 8.0 mm | 100 x 100 mm |
| 12.0 + 12.0 mm | 150 x 150 mm |
