SCHLATTER PG16, complete welding line to produce welded mesh

SCHLATTER PG16, complete welding line to produce welded mesh. Year: 2002

  • 6 Meter line wire table
  • Line wire pre loading unit
  • Welding machine SCHLATTER  MG 16.04/4C ( 4 welding transformer 100KVA each)

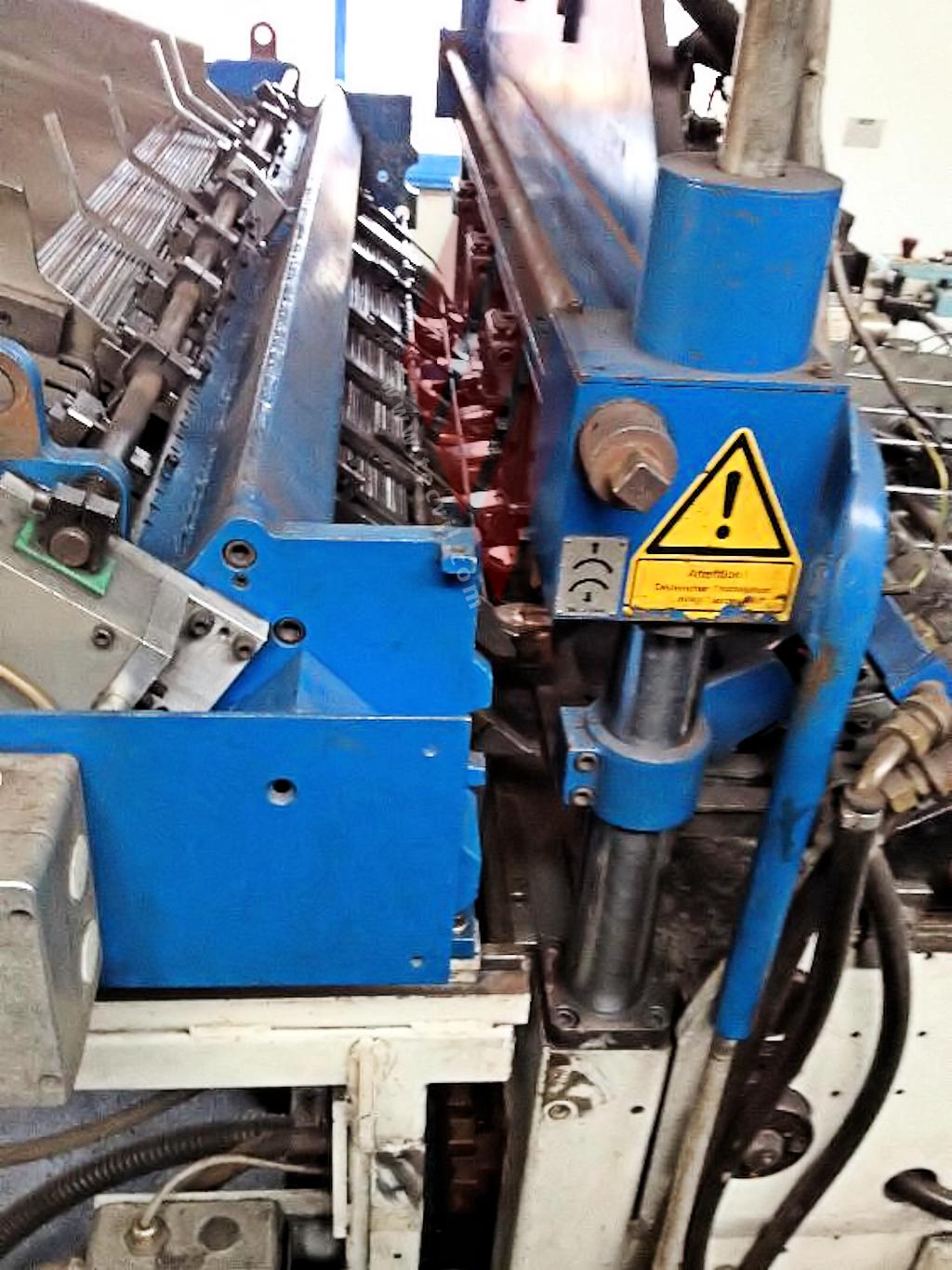

  • Cross wire feeder QFE34/2

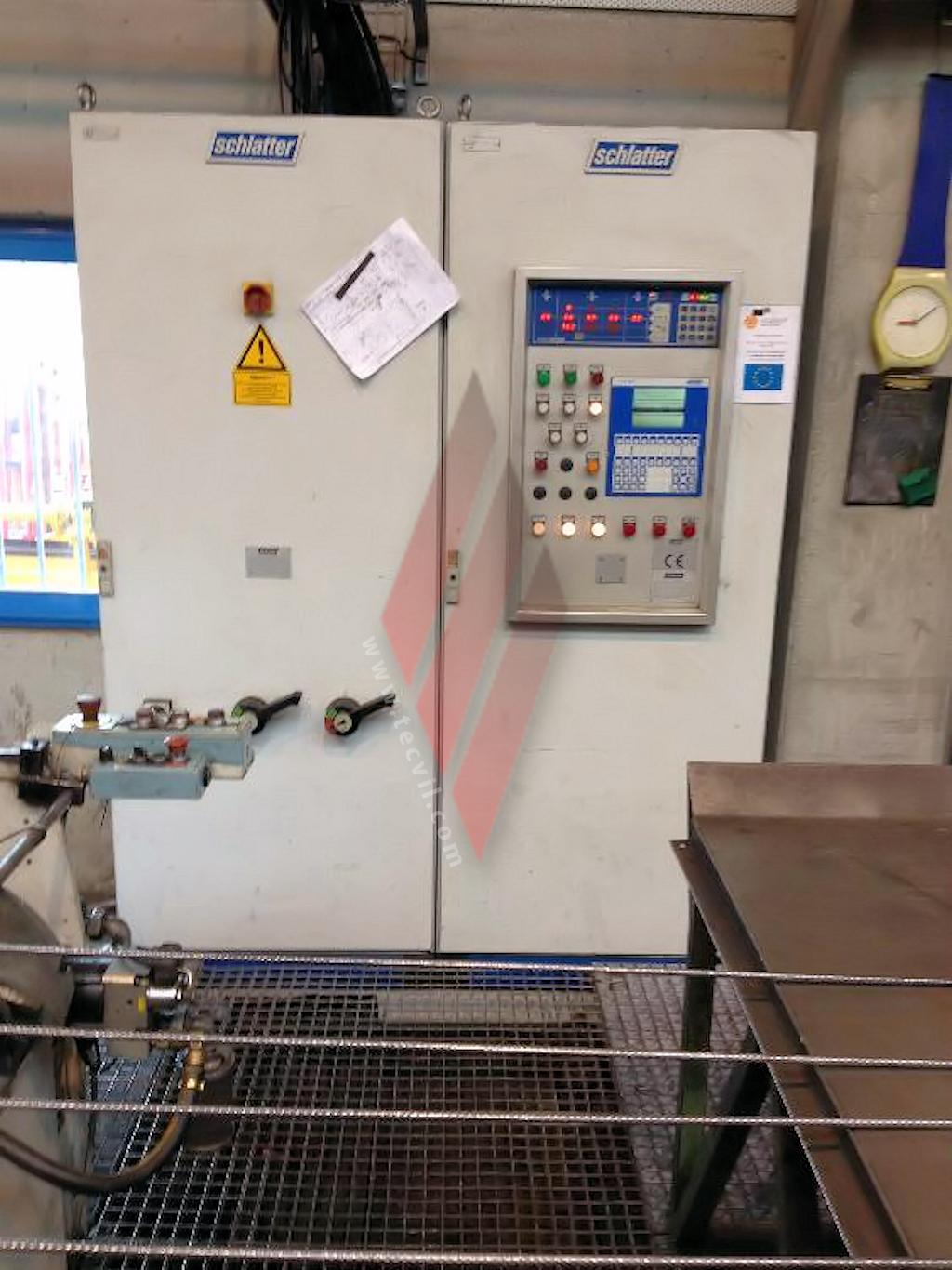

  • Control cabinet MP PCS950/115U
  • Power cabinet

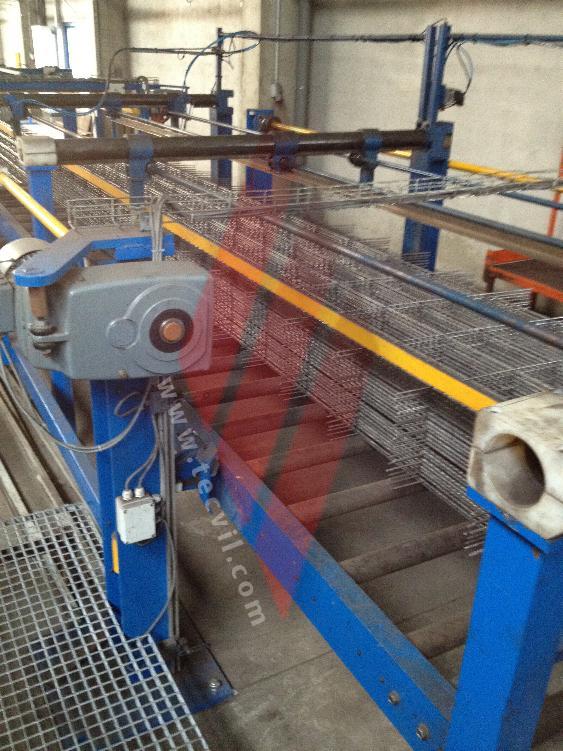

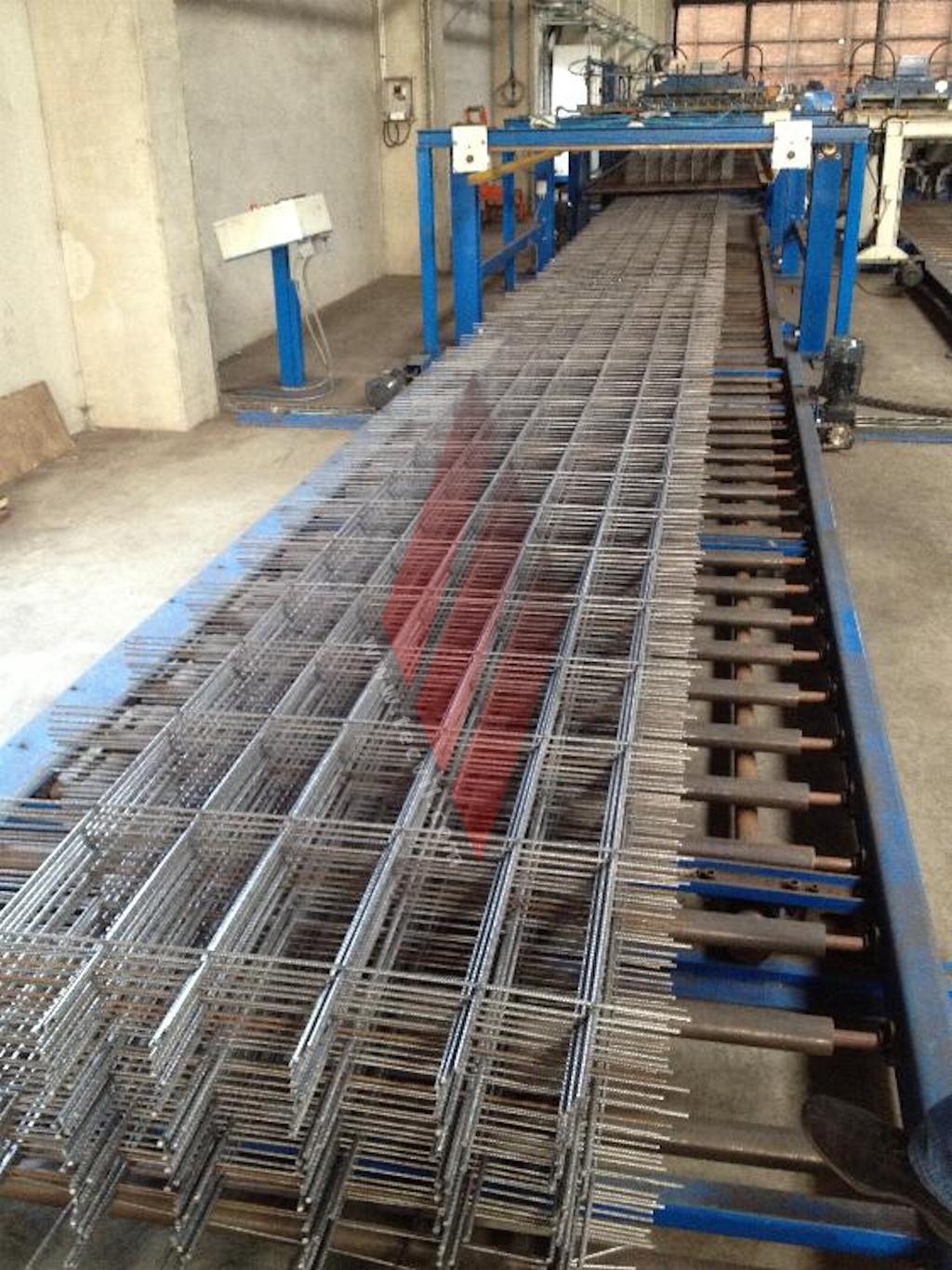

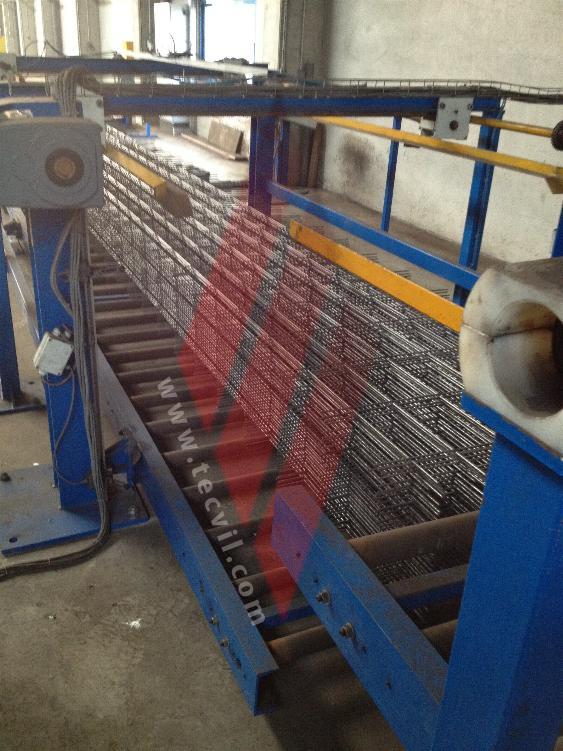

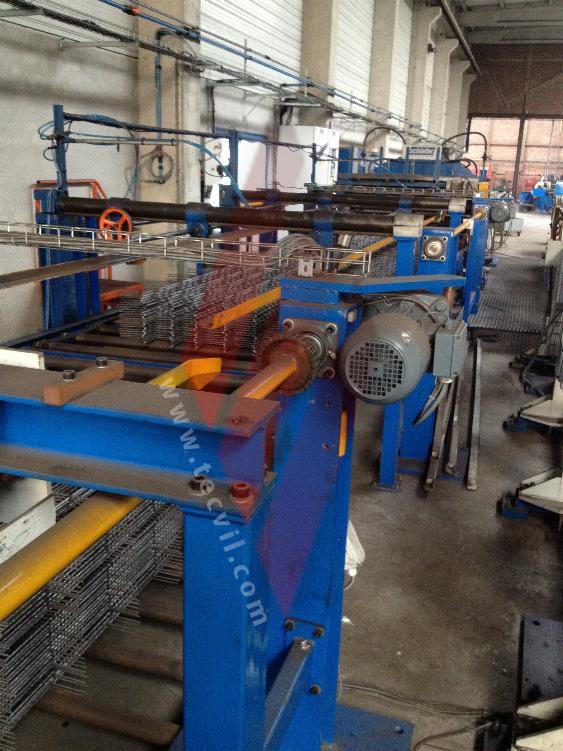

  • Stacking unit up to 6 meters

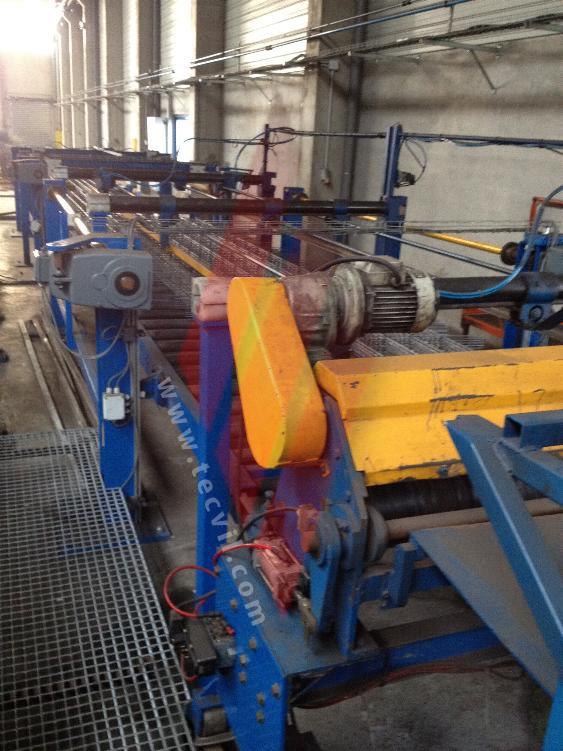

  • Optional conveyers’

TECHNICAL SPECIFICATION :

Mesh width max. 1650 mm
min. 300 mm
Line wire length 800 – 6000 mm
Space between line wires  min 50 mm
Space between cross wires min. 25mm
Line wire diameter 4.0 – 12.0 mm
Cross wire diameter 4.0 – 12.0 mm
Amout line wires 10
Line wire overhang min. 0 mm
max. 170 mm

Max. line and cross wire diameter Min space between line and cross wires
3.0  + 3.0 mm 50 x 50 mm
8.0 + 8.0 mm 100 x 100 mm
12.0 + 12.0 mm 150 x 150 mm
