MG200 (32/16D) – Schlatter PG32SOLD
Machine composed :
- Line wire table
- LVR section 1 et 2

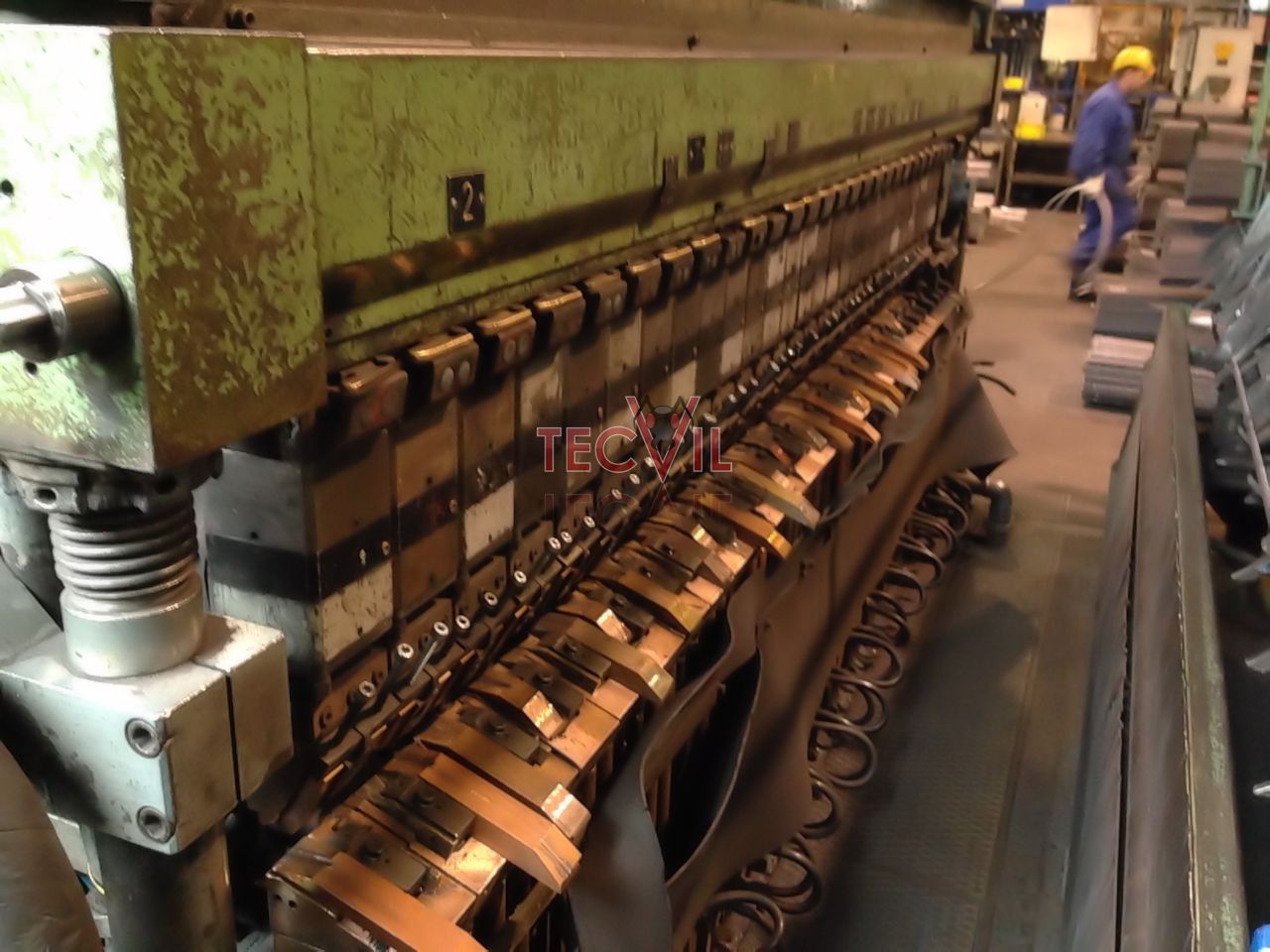

- Welding machine Schlatter PG32/16D with 50 mm live wire spacing.

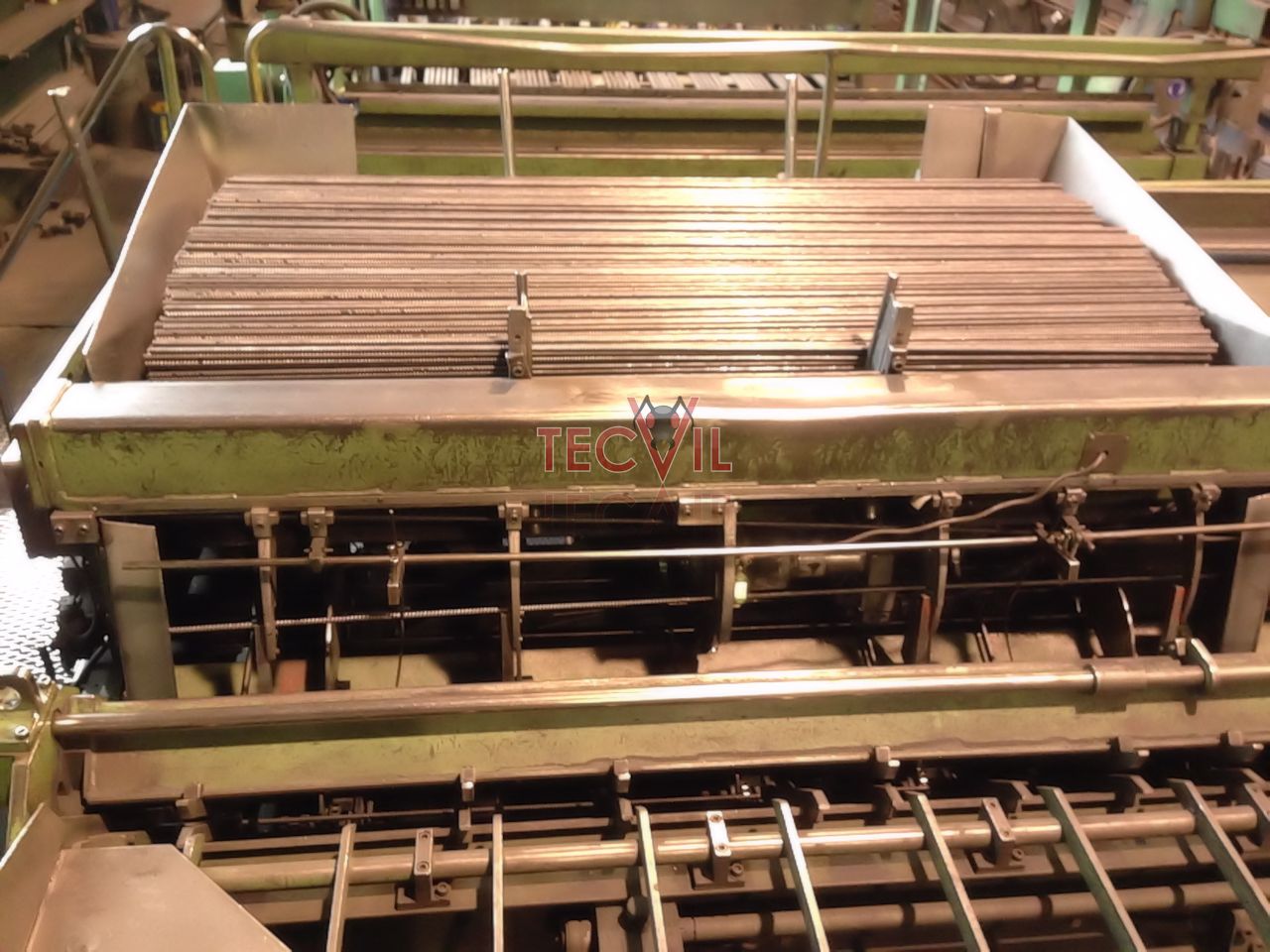

- Cross wire feeder QS5 with QMD big capacity

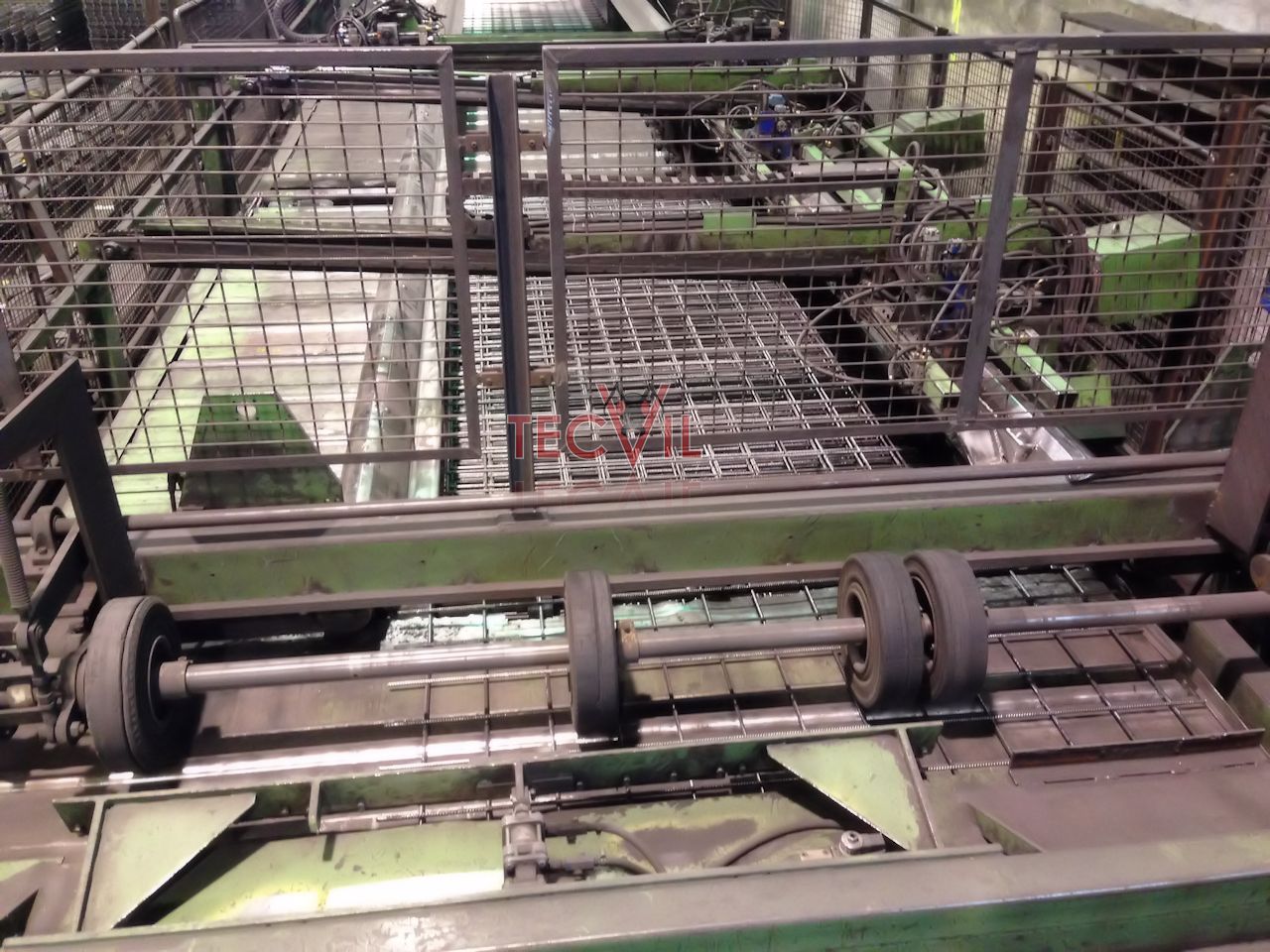

- Stacker & turner mesh panel. Stacking unit up to 14 M and Turning unit up to 6M
- New control cabinet Siemens Simatic S7

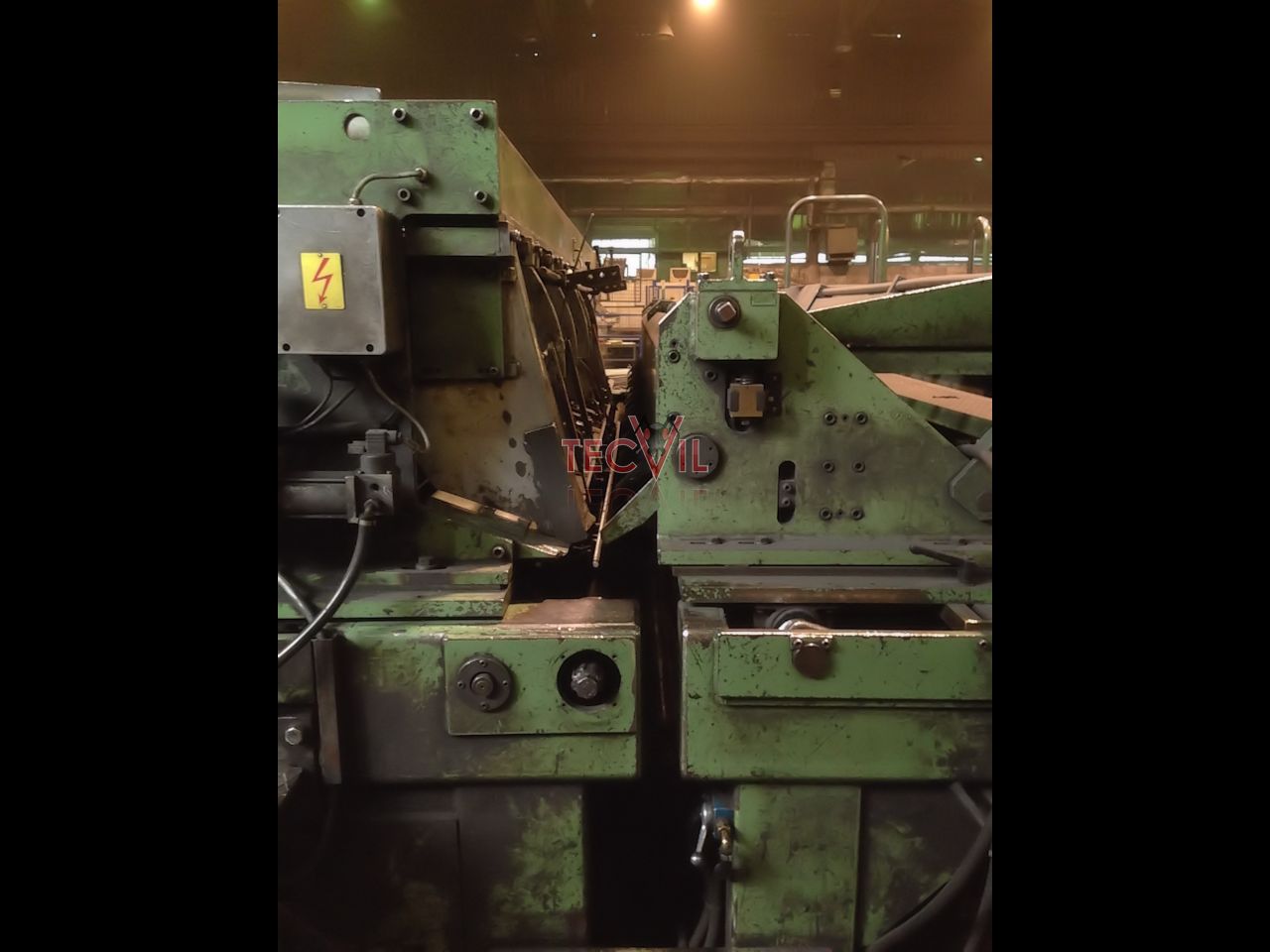

The videos and photos were taken before disassembly for renovation.
| Mesh width | max. 3 250 mm min. 1 000 mm |
|---|---|
| Spacing between the extreme line wires | max 3 200 mm |
| Line wire length | 1 500 – 14 000 mm |
| Space between line wires | 100 – 150 – 200 mm |
| Space between cross wires | Stepless |
| Line wire diameter | 4.0 – 12.0 mm |
| Cross wire diameter | 4.0 – 12.0 mm |
| Amout line wires | 46 |
| Line wire overhang | Stepless |
